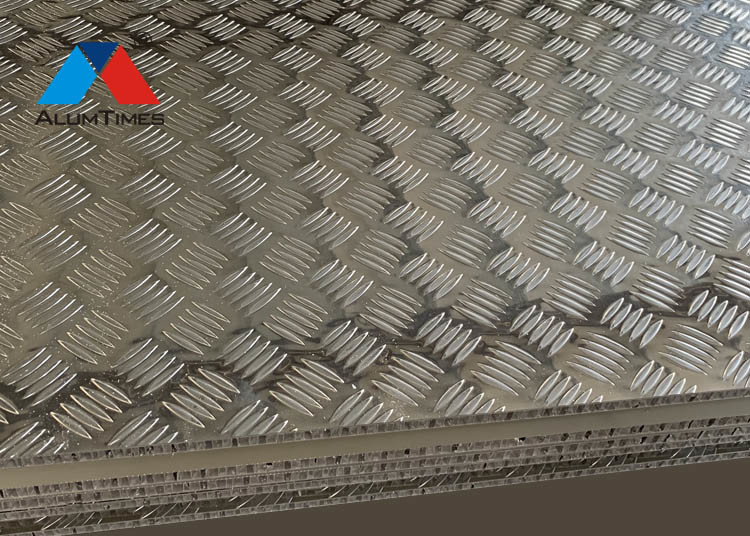

Anti-static anti-slip aluminum honeycomb panel for scaffolding platform

PRODUCT DESCRIPTION

DETAILS

TOP ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7 - 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

ALUMINUM CORE

Hexagonal cells, Alloy series 3003

Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”

Foil thickness: from 50 to 70 microns

Alloy series 5052 could be customized

BOTTOM ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7- 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

On request: Special alloys, treatments and coating with RAL colors

Alumtimes Company Advantages:

MOQ: 10m2

Quality Warranty: 20 years

Delivery time: 12 days

Other Service: supply the panel installation extrusions and accessories!!

Fire test:

Based on EN13501: Class B, s1, d0, (EU standard) ,

Based on BS476 pt4, pt6&pt7: Class 0, index 0 ( UK& Singapore standard)

Based on GB/T 8624-27: Class B, s1, d0 (Chinese standard)

WORKSHOP

INSTALLATION

FEATURES

Weight
One of the primary reasons for utilizing aluminum honeycomb panels is that they exhibit excellent strength-to-weight ratios compared to traditional construction materials.
Strength
The ability to configure panels with different materials allows us to create much stronger panels than one can achieve with solid structures. The skill, however, is in analyzing all of the material choices for meeting your specifications and then selecting those that will provide the most functionality at the lowest cost.
Fire Resistance
We use a number of materials that are non-combustible and self extinguishing. Most flammability ratings and building codes can be easily met with some combination of materials.
Thermal Control
Most aluminum honeycomb panels have excellent insulation properties simply due to the nature in which they are designed. Since both honeycomb and foam cores trap air between the skins, they are inherently insulating to some degree.
Sound Control
While we do not specialize in acoustical panels, we are happy to incorporate any type of sound deadening specifications into the composite panels that we design.
Impact Resistance
Impact resistance can be accounted for by adjusting the honeycomb cell size, utilizing different core materials and skins, or adding thickness to the surface material and/or core.
Moisture Resistance
All types of aluminum and plastic honeycomb cores can be used to improve water and moisture resistance, but RFP surface materials can also do the job for many applications.
Corrosion Resistance
Not only can we utilize different core and surface materials to achieve resistance to weather and chemicals, but coatings can be applied for added security.

APPLICATION

A. Facades

B. Billboards, exhibition desks and notice boards

C. Wall boards and ceilings for tunnels

D. Materials for industrial application, car and ship bodies

E. Used in cooling tower in power plant, for cooling and filtering

F. Used in mechanical and electrical platform, for supporting and resisting compression

G. Used in exhaust of luxury car, for silencing

H. Used in fireplace, for resisting high temperature and air uniform

I. Used in power laser cutting machine platform, for high temperature resistant

J. Used in for textile equipment, for air uniform

With the rapid growth of international building material market, people's demand for metal building materials is increasing.

Golden River Group Limited Which established in 2002 is a high-tech manufacturing enterprise specializes in design, sales and engineering. With total investment of US$ 10 million, occupies 70,000 square meters of land. At present, we are one of the largest and most technically advanced metal wall panel manufacturer in Guangdong province of China. We factory mainly concentrate on the research and producing of high-tech aluminum products, including PVDF Aluminum Solid Panel, Metal Ceiling Tiles, Aluminum Composite Panel, Aluminum Honeycomb Panel , Corrugated Aluminum Panel, 3D Aluminium Core Panel, etc. 70% of our products exported to Europe, Australia, the Middle East, South America and Southeast Asia, 30% used in the domestic well-known projects.

In the last ten years, we have provided products for many famous engineering projects and received consistent high praise from the customers. We factory equipped with all kinds of edge-cutting numerical control equipment and laser cutting machine which imported from Germany with GEMA, Randburg fully-automatic static fluorine carbon spraying production line from United States and Japan. A highly specialized team with nearly 600 staff who focuses on design, engineering and management. We are confident to supply the most optimized engineering solutions for the clients.

We company has been authorized with ISO9001:2000 and ISO 14001 certification, issued by quality experts SGS. In addition, ALUTIMES has received ‘Green Indoor Decoration Material’ honor, and praised by customers as 'Providing Quality Goods and Customer Services’. Moreover, we are awarded by the China Building Material Enterprises Management Association.

ALUTIMES meets the market demand and keep up with the trend of the concept ‘To Be an Experienced, Professional and Distinctive Integrated Supplier for Metal Curtain Wall Construction Materials.’ We constantly innovate, improve the technology and optimize the service to achieve international standards, meet customer needs and keep the leading position in the industry.
