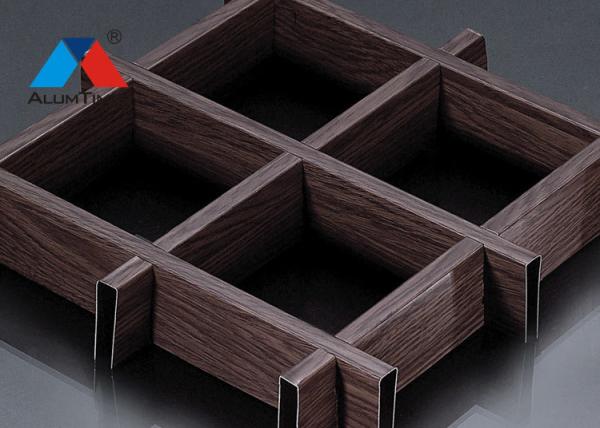

Aluminum Open Cell Ceiling Square Grid 600 * 600mm 75 * 75mm Wood
Color
1. Product Description
ALUMTIMES Open Cell ceiling system is one of the open types of
ceiling series. with the widest selection of patterns, colors, and
configurations for lighting and other systems,Our unique expertise
enables a wide range of design possibilities. Ideal for public area
such as shopping malls,airport,bus-station and so on,standard
nominal size are 50X50mm, 75X75mm, 100X100mm, 150X150mm, 200X200mm, 300X300mm, other sizes are available if required.
| Product Name | Grid aluminum ceiling
|
| Alloy | 1100,3003,3005,3105
|
| Type | G50,75,100,150,200,300
|
| Surface Treatment | Powder coating, roll painted, Film coated, Hot-printed
|
| Shape | Grid shape
|
| Certificates | CE, SGS, ISO, etc
|
| Packaging | Carton package
|
| Delivery Time | 18 days after receiving the deposit and confirm the details
|
| Payment | T/T, L/C, Western Union
|
ACCESSORIES
Grid ceiling system is composed of main and cross 0.5mm aluminium
grid ceiling unit and hanging bracket to form a suspending system.
Also including hanging pole, explosive bolt, all galvanized.
| Aluminum Ceiling Panel Feature | 1) Fireproof, anti - corrosion, thermo stability and good weather resistance
|
2) Easy to install and maintain clean
|
3) Various designs for choose, Widely used
|
4) Different color can be customized,such as RAL colors, wooden texture
|
| Aluminum Ceiling Tiles Application | 1) Industrial and civil buildings
|
2) interior decorative panel, partition panel
|
3) airport, station, museum, opera house
|
4) exhibition hall, shopping centre
|
5) conference hall, office, bar and etc
|
| ROLLER COATING VS POWDER COATING |
| Roller Coating
| Traditional Powder Coating |
Surface smoothness | Roller coating is a compressed printing coating. The entire coating
layer and the surface are non-granules and non-micropores. | Powder coating is an electrostatic floating coating. The entire
coating layer and the surface are the accumulation of granules with
micropores.
|
Dust resistance | Due to the non-granular and non-microporous coating layer and
surface, pollutants are unable to penetrate the surface. | Due to granular accumulation and micropores for coating layer and
the surface, pollutans are easily penetrate the surface to the
coating layer.
|
| Cleaning | Due to smooth surface and no pollution,surface dusts and other
pollutants are easily cleaned. | Due to the unsmoothed and polluted surface, the pollutants on the
infiltration surface and the rock-bottom are unable to clean after
several years.
|
Coating thickness |
Due to compressed coating of plate, board uniform force,the
tolerance of coating thickness is less than 0.5μm. | Due to electrostatic floatation coating and uneven coating in the
middle and all around, the tolerance of coating thickness is about
7μm(one important factor lead to color difference).
|
Guarantee | 10 years | 5 year |
FAQ:
1. What is the minimum order quantity?
100 square meters for aluminium ceiling tiles.
2. What is delivery time?
15-18 days after deposit,Except for public holidays.
3. How can you guarantee the quality?
We have rigorous quality test system, from raw materials to
finished products, the materials must be checked and signed by QC .
4. How long can I get a quote?
The quotation can be provided not longer than 24 hours on condition
that we know all detailed requirements.
5. Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients.
