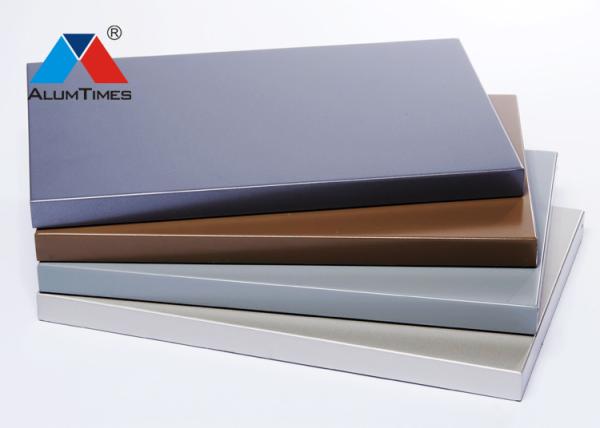

15 mm aluminum honeycomb core sandwich panel for curtain wall

SPECIFICATIONS

TOP ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7 - 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

ALUMINUM CORE

Hexagonal cells, Alloy series 3003

Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”

Foil thickness: from 50 to 70 microns

Alloy series 5052 could be customized

BOTTOM ALUMINIUM SKINS Thickness (mm):

0,5 - 0,7- 1 (standard)

Special thickness according to customers’ requirements (such as, 1.5-2.0-3.0mm)

On request: Special alloys, treatments and coating with RAL colors

Fire test:

Based on EN13501: Class B, s1, d0, (EU standard) ,

Based on BS476 pt4, pt6&pt7: Class 0, index 0 ( UK& Singapore standard)

Based on GB/T 8624-27: Class B, s1, d0 (Chinese standard)

Company prodution capacity: 1000000m2 / year

Company Certificate: ISO9001:2008, ISO14001:2004

WORKSHOP

FEATURES

1. Energy saving, green material: Good thermal and sound insulation & sound insulation, fire resistance.
2. High wind load resistance: High strength & rigidness and stable structure of honeycomb core.
3. Easy installation & low labor cost: Light weight

4. Good decoration: Excellent flatness & wide color selection.

5. Excellent fireproof property

6. Super peeling strength

APPLICATION

1) Interior wall cladding

2) Exterior wall cladding

3) Ceiling panel

4) Other decoration area

5) Gas piping, cables, building materials, etc (this product fills a gap in the domestic construction materials field, with performance indexes superior to panels manufactured overseas)

6) Curtain wall decoration for buildings where security is important, as airports, hospitals and research centers

7) Curtain wall boards for outside walls of normal buildings

8) Renovations for old buildings and movable houses

With the rapid growth of international building material market, people's demand for metal building materials is increasing.

Golden River Group Limited Which established in 2002 is a high-tech manufacturing enterprise specializes in design, sales and engineering. With total investment of US$ 10 million, occupies 70,000 square meters of land. At present, we are one of the largest and most technically advanced metal wall panel manufacturer in Guangdong province of China. We factory mainly concentrate on the research and producing of high-tech aluminum products, including PVDF Aluminum Solid Panel, Metal Ceiling Tiles, Aluminum Composite Panel, Aluminum Honeycomb Panel , Corrugated Aluminum Panel, 3D Aluminium Core Panel, etc. 70% of our products exported to Europe, Australia, the Middle East, South America and Southeast Asia, 30% used in the domestic well-known projects.

In the last ten years, we have provided products for many famous engineering projects and received consistent high praise from the customers. We factory equipped with all kinds of edge-cutting numerical control equipment and laser cutting machine which imported from Germany with GEMA, Randburg fully-automatic static fluorine carbon spraying production line from United States and Japan. A highly specialized team with nearly 600 staff who focuses on design, engineering and management. We are confident to supply the most optimized engineering solutions for the clients.

We company has been authorized with ISO9001:2000 and ISO 14001 certification, issued by quality experts SGS. In addition, ALUTIMES has received ‘Green Indoor Decoration Material’ honor, and praised by customers as 'Providing Quality Goods and Customer Services’. Moreover, we are awarded by the China Building Material Enterprises Management Association.

ALUTIMES meets the market demand and keep up with the trend of the concept ‘To Be an Experienced, Professional and Distinctive Integrated Supplier for Metal Curtain Wall Construction Materials.’ We constantly innovate, improve the technology and optimize the service to achieve international standards, meet customer needs and keep the leading position in the industry.
