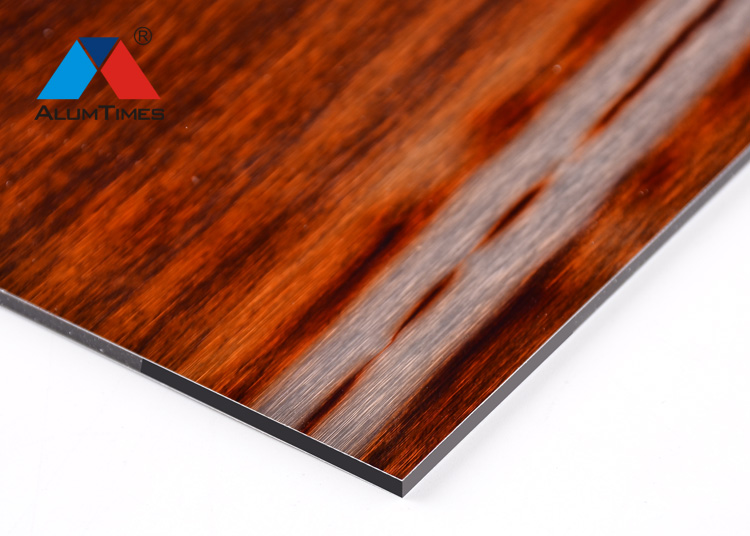

Aluminium Composite Panel outdoor wall panel for signage modern
wall panel
Aluminum Composite Panel Applications
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and
balconies
4) Shop door decoration
5) Advertisement board display platforms and signboards
6) Wall boards and ceilings for tunnels
7) Industrial materials and materials for vehicles and boats
Specification
Fire-resistance aluminum composite panel is difficult to be fired,
light Weight, green material
Description
Fire-resistant aluminum composite panel is made of fireproof
plastic core and aluminum sheet both sides.
It’s one kind of new composing material. It’s fireproof
characteristic can reach class B1 and A2, as green material, it’s
difficult to be fired and there is no harmful gas when it is on
fire.
Raw material
Aluminum sheet, coated with PVDF/PE lamination film
Non-combustible filled core
| Name | Aluminum Composite Sheet/Alucobond Sheet |
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm is available |
| Aluminum Thickness | 0.5mm,0.4mm,0.3mm,0.21mm,0.18mm,0.15mm,
0.12mm,0.1mm,0.06mm |
| Width | 1220mm(regular),1250mm,1300mm,1500mm,
1550mm,1570mm,1575mm(Maximum) |
| Length | 2440mm(regular),and tailored by customer’s offers,5800mm(Maximum) |
| Standard size | 1220(Width)x2440(Length)x3mm(Thickness);
1250(Width)x2440(Length)x4mm(Thickness); |
| Surface Finish | Brushed, Mirror, PE Coated, PVDF Coated |
Characteristic:
It is difficult to be fired with good fire-resistance performance,
and light weight. It is a kind of green material.
Thickness: 2-6mm
Width: standard 1220mm, maximum 1500mm
length: standard 2440mm/ Maximum 3500mm
Application:
It’s widely used for internal and external walls of Bank, hall,
conversation room, hotel, and public place, which have high
requirement of fireproof.
Features:
1 have the same features with PVDF panel ,nano ACP has better
function of self-cleaning and fade resistance
2 Pollution resistance ,dust is easily rushed away by rain
3 Good aging resistance ,and anti-acid ,anti-alkali ,solvent
resistance
4 No ink mark remaining when writing with oil pen on panel
5 Kynar 500 PVDF resin features strong chemical proofness ,unique
colors can be easily maintained
Quality standard
According to GB/T 17748-1999 and SGS KV-07-04992X standards
FAQ:
Q:Are u a factory or trading company?
A: We are a factory.
Q: Can I get samples?
A: Yes, samples can be sent for your reference.
Q: Can I visit your factory?
A: Yes, welcome to our factory and we will arrange it for you.
Q: What is the shipping port?
A: We ship the goods via Guangzhou, Shenzhen port.
Q: What is your time of making samples?
A: Usually we will take 1~3 days to make the samples.
